Home Assistant is the most powerful smart home platform available—and it's completely free. It runs locally on your network, supports thousands of devices, and gives you automation capabilities that make Alexa routines look like a toy.

The cheapest way to run it? A Raspberry Pi. For under C$135 in hardware, you get a smart home hub that rivals (and exceeds) anything from Samsung, Amazon, or Google.

Here's how to set it up from scratch.

Raspberry Pi on a desk

What You Need

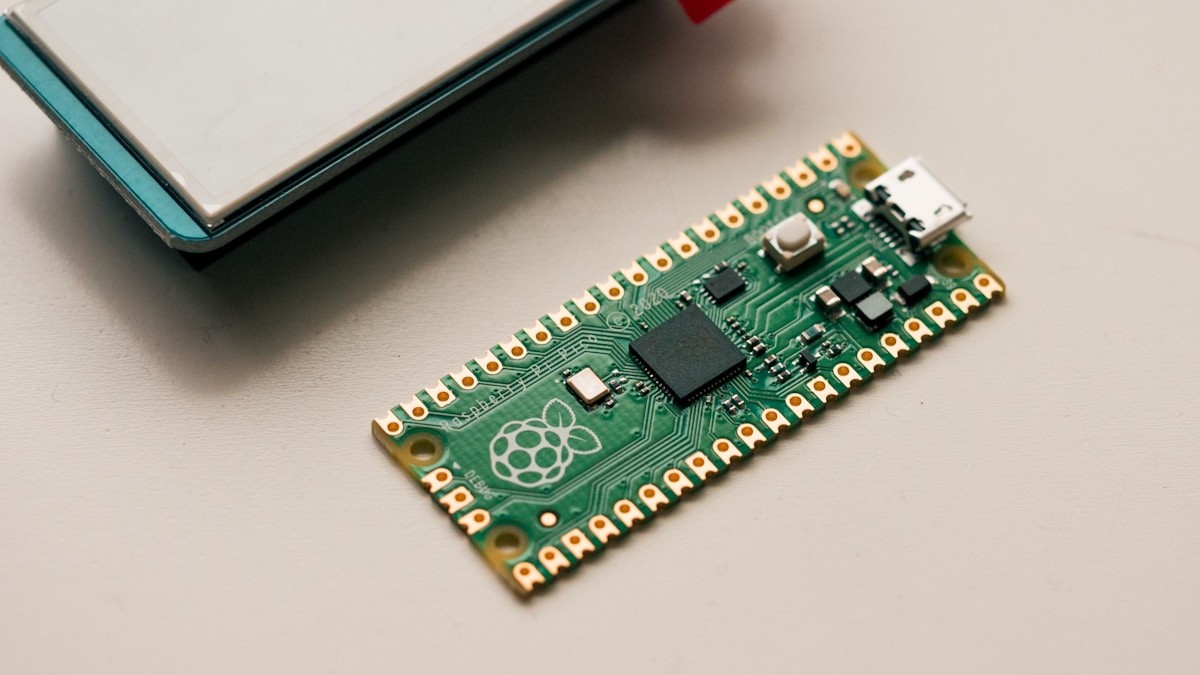

Green circuit board on white table

Hardware

  • Raspberry Pi 4 (4GB RAM) — C$75 (2GB works but 4GB is recommended)
  • MicroSD card (32GB+) — C$14 (use a quality brand like Samsung or SanDisk)
  • USB-C power supply (3A) — C$14 (official Raspberry Pi PSU recommended)
  • Ethernet cable — C$6.8 (WiFi works but Ethernet is more reliable)
  • Case with heatsink — C$14 (prevents thermal throttling)
  • Optional: SSD + USB adapter — C$41 (much faster and more reliable than SD card)

Software

  • Home Assistant OS — free download
  • Balena Etcher — free flashing tool
  • A computer to flash the SD card

Total cost: ~C$122

  • Zigbee USB coordinator (Sonoff Zigbee 3.0 dongle ~C$34) — for Zigbee devices
  • Z-Wave USB stick (Zooz ZST39 ~C$41) — for Z-Wave devices
If you're buying new, consider the Home Assistant Green (C$135) or Yellow (C$170) — purpose-built hardware that skips the Raspberry Pi setup entirely.

Step-by-Step Installation

Step 1: Download Home Assistant OS

  1. Go to home-assistant.io/installation
  2. Select Raspberry Pi 4 as your platform
  3. Download the Home Assistant OS image (not Container or Core)

Step 2: Flash the Image

  1. Download and install Balena Etcher (or Raspberry Pi Imager)
  2. Insert your microSD card into your computer
  3. Open Etcher → Select the Home Assistant image → Select your SD card → Flash
  4. Wait for flashing and verification to complete (~5 minutes)

Step 3: Boot the Raspberry Pi

  1. Insert the flashed SD card into the Raspberry Pi
  2. Connect Ethernet cable to your router
  3. Connect the USB-C power supply
  4. Wait — the first boot takes up to 20 minutes (it's downloading and installing)

Step 4: Access Home Assistant

  1. Open a browser on any device on your network
  2. Go to http://homeassistant.local:8123
  3. If that doesn't work, try http://[your-pi-ip]:8123 (check your router for the Pi's IP)
  4. You should see the Home Assistant setup wizard

Step 5: Create Your Account

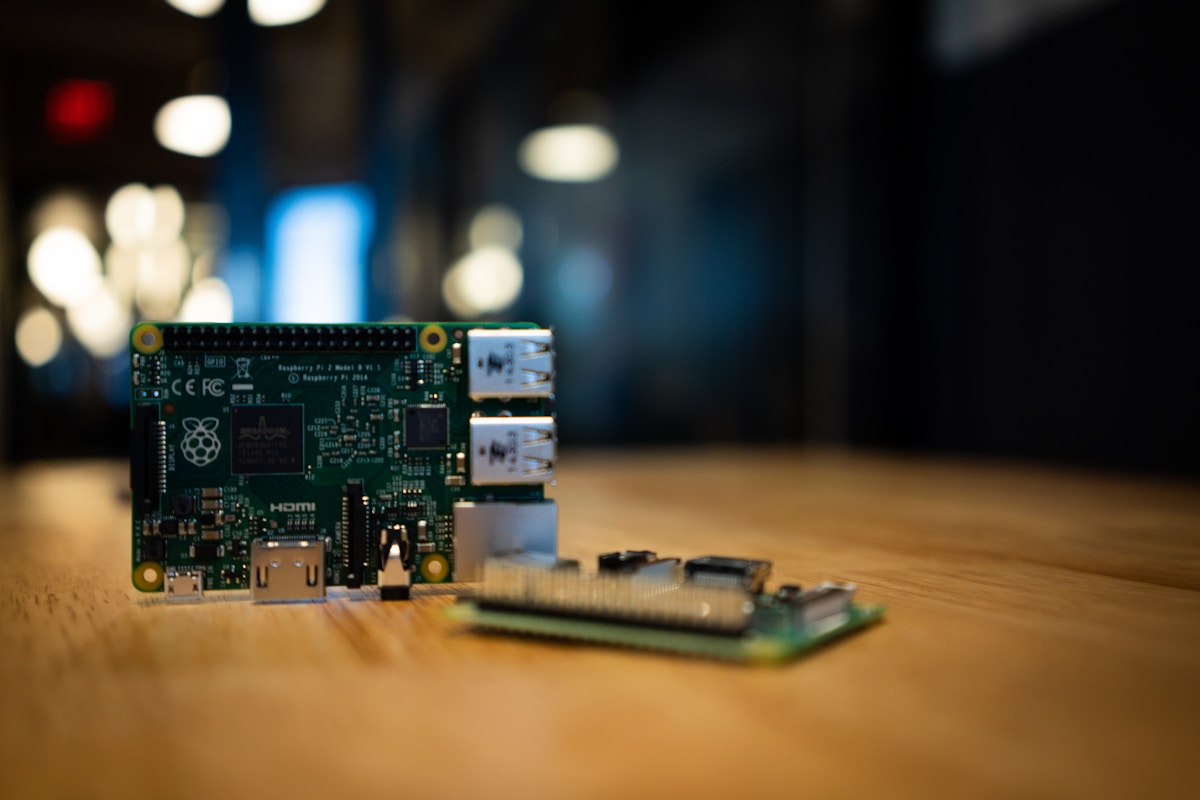

Two green circuit boards on wooden surface
  1. Enter your name, username, and password
  2. Set your home location (for sunrise/sunset automations)
  3. Choose your units (metric/imperial)
  4. Home Assistant will auto-discover devices on your network

📺 Watch: Home Assistant on Raspberry Pi — Complete Beginner Setup

First Things to Configure

Add Integrations

Home Assistant auto-discovers many devices, but you'll want to manually add some:

  1. Go to Settings → Devices & Services
  2. Click + Add Integration
  3. Search for your devices (Hue, Sonos, Roku, etc.)

Popular integrations to add first:

  • Philips Hue
  • Google Cast (Chromecast, Google speakers)
  • Spotify
  • Weather (OpenWeatherMap — free API key)
  • Your router (for presence detection)

Set Up Zigbee (If Using Zigbee Devices)

  1. Plug in your Zigbee USB coordinator
  2. Go to Settings → Devices & Services → + Add Integration
  3. Search for Zigbee Home Automation (ZHA) or install Zigbee2MQTT via add-ons
  4. Select your USB coordinator
  5. Start pairing Zigbee devices

Create Your Dashboard

Home Assistant's dashboard is fully customizable:

  1. Go to Overview (main dashboard)
  2. Click the three dots → Edit Dashboard
  3. Add cards for lights, sensors, cameras, etc.
  4. Organize by room or function

Your First Automation

Let's create a classic: lights on at sunset.

  1. Go to Settings → Automations & Scenes → + Create Automation
  2. Trigger: Sun → Sunset
  3. Action: Call service → Light: Turn on → Select your lights
  4. Set brightness to 80%
  5. Save

More Automation Ideas

  • Motion-activated lights: Trigger on motion sensor, condition: after sunset
  • Good morning routine: Time trigger → turn on lights, start coffee maker, read weather via speaker
  • Away mode: When everyone leaves (phone presence) → turn off all lights, lock doors, arm cameras
  • Laundry done: When washing machine power drops below 5W → send notification

Essential Add-ons

Add-ons extend Home Assistant's capabilities:

Add-onWhat It Does
File EditorEdit config files in the browser
Samba ShareAccess HA files from your computer
HACSCommunity store for custom integrations and themes
Mosquitto MQTTMQTT broker for advanced devices
Node-REDVisual automation builder (drag-and-drop)
DuckDNS + NginxSecure remote access

Install add-ons via Settings → Add-ons → Add-on Store.

Performance Tips

Use an SSD Instead of SD Card

SD cards fail. It's not if, it's when. An SSD is:

  • 10x faster for database operations
  • Far more reliable for constant read/write
  • Easy to set up: USB SSD adapter → boot from USB in Pi settings

Optimize the Database

A close up of a laptop computer with a micro board attached to it

Home Assistant logs everything by default. Trim it:

```yaml

# In configuration.yaml

recorder:

purge_keep_days: 7

exclude:

domains:

  • automation
  • updater

```

Keep It Updated

Home Assistant releases monthly updates with new features and device support. Update via Settings → System → Updates.

Troubleshooting

Can't Access homeassistant.local

  • Try the IP address directly (check your router's DHCP list)
  • Make sure you're on the same network
  • Wait longer — first boot can take 20+ minutes

Zigbee Devices Won't Pair

  • Move the device close to the coordinator
  • Factory reset the device first
  • Check that no other hub is claiming the device
  • Try a different Zigbee channel (Settings → ZHA → Network settings)

Slow Performance

  • Switch from SD card to SSD
  • Reduce recorder history
  • Disable unused integrations
  • Check for integrations polling too frequently

Got Questions About Home Assistant on Raspberry Pi? Let's Clear Things Up.

Is Raspberry Pi 4 powerful enough?

For most homes, absolutely. It handles 100+ devices, dozens of automations, and a full dashboard without breaking a sweat. If you're running heavy add-ons (Frigate for camera AI, for example), consider upgrading to a mini PC.

Can I access Home Assistant remotely?

Yes. The easiest way is Nabu Casa (C$8.84/month) — Home Assistant's official cloud service for remote access. Free alternatives include DuckDNS + Nginx Proxy Manager, but they require more setup.

Will my smart home work if the Pi crashes?

Zigbee and Z-Wave devices will maintain their last state. WiFi devices controlled through their own apps still work. But automations stop until the Pi is back online. For critical automations, consider a UPS battery backup for the Pi.

How does this compare to SmartThings or Alexa?

Home Assistant is significantly more powerful but has a steeper learning curve. It supports more devices, offers more complex automations, runs 100% locally, and has no subscription fees. The trade-off is setup time and occasional troubleshooting.

Home Assistant on a Raspberry Pi gives you the most capable smart home hub available for under C$135. Start simple, add devices gradually, and explore automations as you get comfortable. For more on smart home protocols, check out our thread vs zigbee comparison or our smart home hub comparison.
